Access Control System Design Software for Door Plans
Document each controlled opening as a coordinated assembly of credentials, readers, locks, egress, monitoring, power, controllers, network, hardware, and responsibility. This practical guide explains what to document, how to structure the drawing set, where coordination fails, what the proposal must carry, and how to evaluate software against a real contractor workflow.
What access control system design software must solve
Someone searching for access control system design software is rarely looking for a generic drawing program. The practical need is a controlled way to translate customer intent and field conditions into a design another estimator, installer, reviewer, programmer, IT administrator, and customer can understand. The software must help the contractor preserve decisions as the project moves from discovery to proposal and from approved scope to installation.
For access control, the core promise is specific: Document each controlled opening as a coordinated assembly of credentials, readers, locks, egress, monitoring, power, controllers, network, hardware, and responsibility. That means the plan cannot be an attractive background with unconnected icons. Each important item needs a stable identity and a reason to exist. Its location must agree with schedules and schematics; its infrastructure must be visible; its quantity must reach the estimate; and its open decisions must be owned.
The best result is query-complete rather than keyword-heavy. A customer should be able to use this page to understand the deliverables, ask better questions, recognize missing scope, and select a workflow. A contractor should be able to turn the same guidance into a survey checklist, drawing outline, coordination meeting agenda, estimating review, and acceptance plan.
The design record should answer six groups of questions
The table below connects the design scope to a reviewable output. The exact document set depends on project size, contract, jurisdiction, risk, and the responsible designer. The principle stays the same: put information where it can be checked and cross-reference it with stable identifiers.
| Decision group | What to document | Useful output |
|---|---|---|
| Controlled-opening IDs tied to architectural door numbers, locations | Controlled-opening IDs tied to architectural door numbers, locations, use, status, and approved function | Controlled-opening floor plan |
| Credential and reader technology, mounting | Credential and reader technology, mounting, accessibility, environment, cabling, and customer administration | Door/device schedule |
| Locking hardware, power transfer | Locking hardware, power transfer, request-to-exit, door position, emergency release, and mechanical key relationship | Controller and power riser |
| Controller, module | Controller, module, input/output, enclosure, power supply, battery, network, software, and capacity relationships | Sequence-of-operation matrix |
| Door sequence, schedules | Door sequence, schedules, alarms, unlock conditions, fire/life-safety interfaces, and responsibility matrix | Cable and I/O schedule |
| Hardware, cabling | Hardware, cabling, pathway, programming, licensing, credentials, testing, training, and acceptance quantities | Proposal and responsibility matrix |
Recommended deliverables
Controlled-opening floor plan
Controlled-opening floor plan. Record the value, source, verification status, responsible party, and revision so another person can audit the decision.
Door/device schedule
Door/device schedule. Show the relationship on the correct drawing or schedule instead of burying it in a note that cannot be traced.
Controller and power riser
Controller and power riser. Separate observed conditions from design assumptions and customer choices; price uncertainty as an allowance or exclusion when needed.
Sequence-of-operation matrix
Sequence-of-operation matrix. Carry stable identifiers into the takeoff, proposal, installation record, test evidence, and closeout documents.
Cable and I/O schedule
Cable and I/O schedule. Review capacity, compatibility, access, serviceability, future change, and failure behavior before the product is committed.
Proposal and responsibility matrix
Proposal and responsibility matrix. Assign ownership at the interface with architecture, electrical, IT, operations, other vendors, and the authority having jurisdiction.
A floor plan is usually the location index, not the entire design. When lines or notes make it hard to answer a question, move the information to the proper schedule, schematic, riser, elevation, matrix, narrative, or calculation worksheet. Then place a clear reference on both documents so the reader can move between them.
Access Control project review worksheet
Use these six prompts during discovery, drawing review, estimating, and handoff. Write the answer in project language, identify its source, and mark whether it is verified, selected, assumed, excluded, or assigned to another party.
1. Survey evidence
Review this system-specific scope: Controlled-opening IDs tied to architectural door numbers, locations, use, status, and approved function.
Connect it to this coordination condition: Architectural door numbers, handing, frame, swing, glazing, ceiling, wall, mounting, and accessibility. The review is complete only when the plan, Controlled-opening floor plan, quantity basis, responsibility, and verification record describe the same decision. If the answer depends on a field condition, product selection, authority, owner policy, or third-party system, name that dependency instead of converting it into an unsupported promise.
2. Drawing decision
Review this system-specific scope: Credential and reader technology, mounting, accessibility, environment, cabling, and customer administration.
Connect it to this coordination condition: Door hardware set, lock function, latch, closer, panic hardware, transfer device, keying, and hardware supplier. The review is complete only when the plan, Door/device schedule, quantity basis, responsibility, and verification record describe the same decision. If the answer depends on a field condition, product selection, authority, owner policy, or third-party system, name that dependency instead of converting it into an unsupported promise.
3. Infrastructure dependency
Review this system-specific scope: Locking hardware, power transfer, request-to-exit, door position, emergency release, and mechanical key relationship.
Connect it to this coordination condition: Egress, emergency release, fire-alarm interface, elevator or stair conditions, adopted requirements, and AHJ review. The review is complete only when the plan, Controller and power riser, quantity basis, responsibility, and verification record describe the same decision. If the answer depends on a field condition, product selection, authority, owner policy, or third-party system, name that dependency instead of converting it into an unsupported promise.
4. Commercial consequence
Review this system-specific scope: Controller, module, input/output, enclosure, power supply, battery, network, software, and capacity relationships.
Connect it to this coordination condition: Power supply, circuit, battery, voltage drop, enclosure, grounding, surge protection, and electrician scope. The review is complete only when the plan, Sequence-of-operation matrix, quantity basis, responsibility, and verification record describe the same decision. If the answer depends on a field condition, product selection, authority, owner policy, or third-party system, name that dependency instead of converting it into an unsupported promise.
5. Field verification
Review this system-specific scope: Door sequence, schedules, alarms, unlock conditions, fire/life-safety interfaces, and responsibility matrix.
Connect it to this coordination condition: Network, server or cloud, addressing, VLAN, credentials, cybersecurity, integrations, backups, and IT ownership. The review is complete only when the plan, Cable and I/O schedule, quantity basis, responsibility, and verification record describe the same decision. If the answer depends on a field condition, product selection, authority, owner policy, or third-party system, name that dependency instead of converting it into an unsupported promise.
6. Acceptance evidence
Review this system-specific scope: Hardware, cabling, pathway, programming, licensing, credentials, testing, training, and acceptance quantities.
Connect it to this coordination condition: Security policy, credential issuance, schedules, visitor process, monitoring, incident response, training, and closeout. The review is complete only when the plan, Proposal and responsibility matrix, quantity basis, responsibility, and verification record describe the same decision. If the answer depends on a field condition, product selection, authority, owner policy, or third-party system, name that dependency instead of converting it into an unsupported promise.
Trace one access control decision through the record

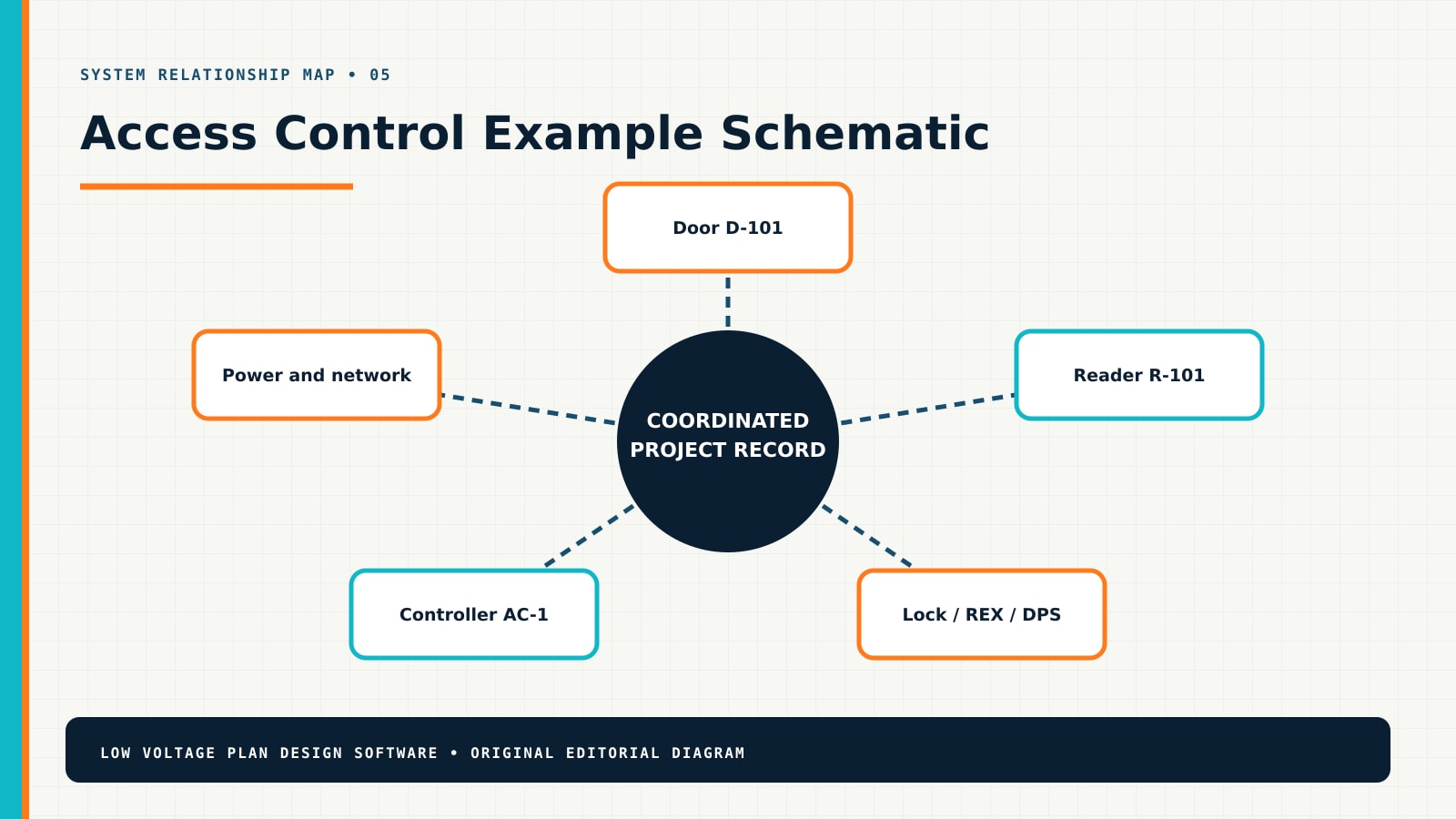

For a small office with a public lobby, staff entrance, server room, and two stair doors, use the following chain as a document-control exercise. The entries are not generic fields: each one ties a discipline-specific design question to a deliverable and a commercial or field consequence.
| Design question | Primary record | Traceability test |
|---|---|---|
| Controlled-opening IDs tied to architectural door numbers, locations, use, status, and approved function | Controlled-opening floor plan | Find the matching Door D-101 relationship, then identify the quantity, owner, verification status, and effect of a revision to Architectural door numbers, handing, frame, swing, glazing, ceiling, wall, mounting, and accessibility. |
| Credential and reader technology, mounting, accessibility, environment, cabling, and customer administration | Door/device schedule | Find the matching Reader R-101 relationship, then identify the quantity, owner, verification status, and effect of a revision to Door hardware set, lock function, latch, closer, panic hardware, transfer device, keying, and hardware supplier. |
| Locking hardware, power transfer, request-to-exit, door position, emergency release, and mechanical key relationship | Controller and power riser | Find the matching Lock / REX / DPS relationship, then identify the quantity, owner, verification status, and effect of a revision to Egress, emergency release, fire-alarm interface, elevator or stair conditions, adopted requirements, and AHJ review. |
| Controller, module, input/output, enclosure, power supply, battery, network, software, and capacity relationships | Sequence-of-operation matrix | Find the matching Controller AC-1 relationship, then identify the quantity, owner, verification status, and effect of a revision to Power supply, circuit, battery, voltage drop, enclosure, grounding, surge protection, and electrician scope. |
| Door sequence, schedules, alarms, unlock conditions, fire/life-safety interfaces, and responsibility matrix | Cable and I/O schedule | Find the matching Power and network relationship, then identify the quantity, owner, verification status, and effect of a revision to Network, server or cloud, addressing, VLAN, credentials, cybersecurity, integrations, backups, and IT ownership. |
| Hardware, cabling, pathway, programming, licensing, credentials, testing, training, and acceptance quantities | Proposal and responsibility matrix | Find the matching Door D-101 relationship, then identify the quantity, owner, verification status, and effect of a revision to Security policy, credential issuance, schedules, visitor process, monitoring, incident response, training, and closeout. |
The chain is successful when a reviewer can move in both directions: from a customer outcome to the drawing and proposal, and from a field quantity back to the approved purpose and evidence. If either direction fails, add the missing identity, cross-reference, schedule field, assumption, or responsibility before approval.
A contractor workflow from requirement to accepted scope

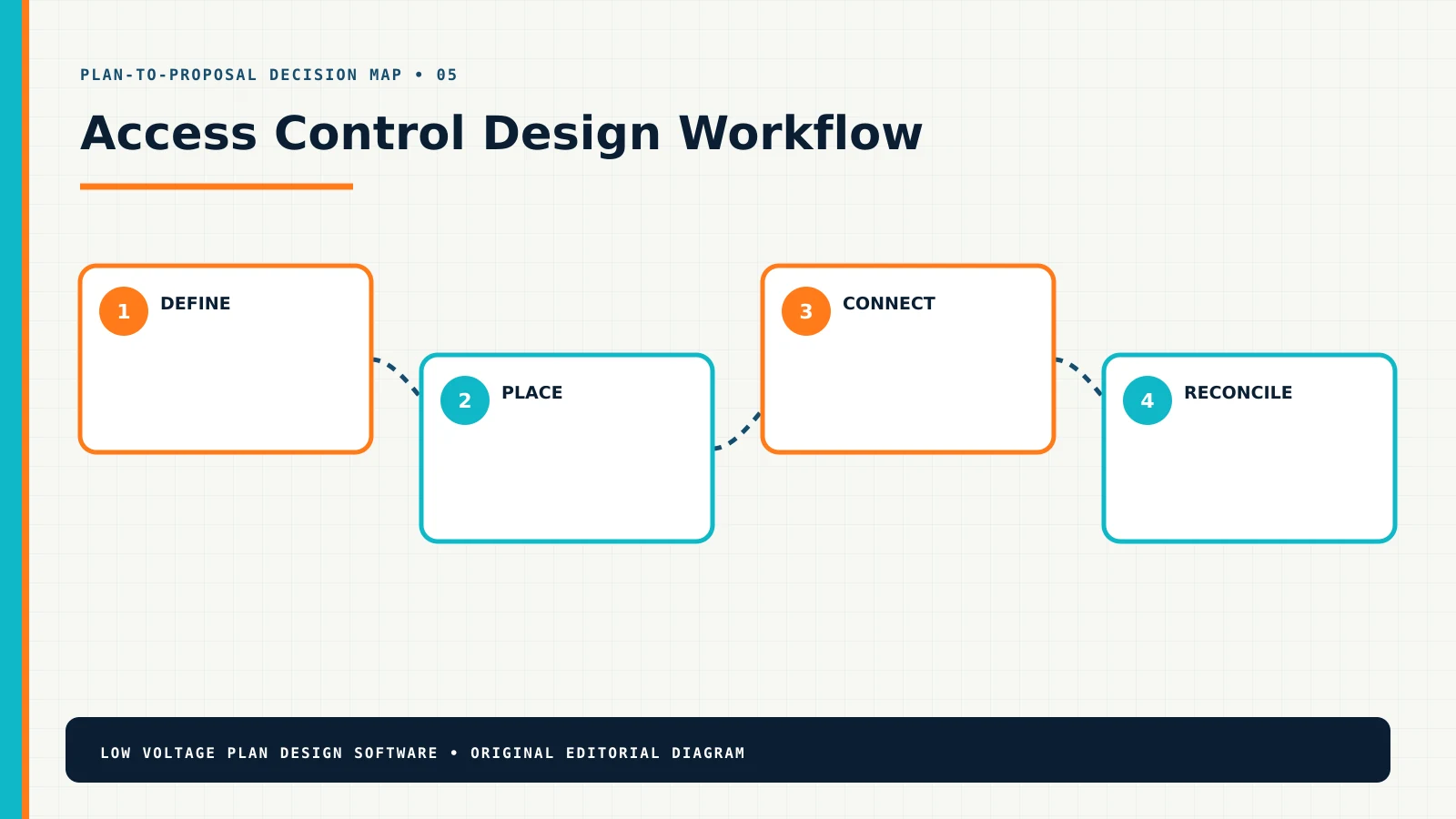

This four-stage sequence keeps design detail proportional to the decision. Early work can show intent and uncertainty. Later work should resolve product-specific interfaces, quantities, installation methods, configuration, testing, and handoff. Do not imply that an early sales layout is permit-ready, engineered, or field-verified unless it actually is.
- Define the operating outcome.Confirm opening function, users, schedules, threat, accessibility, egress, life-safety, and customer policy. At this stage, reject anonymous quantities: each important element needs a location, purpose, relationship, status, or documented basis.
- Place and identify the system.Build a door-by-door device and hardware relationship instead of placing isolated reader symbols. At this stage, reject anonymous quantities: each important element needs a location, purpose, relationship, status, or documented basis.
- Connect infrastructure and ownership.Map openings to controller inputs/outputs, power, batteries, network, fire interfaces, cable, and pathways. At this stage, reject anonymous quantities: each important element needs a location, purpose, relationship, status, or documented basis.
- Reconcile scope and handoff.Reconcile the floor plan, door schedule, riser, sequence, BOM, proposal, commissioning, and record set. At this stage, reject anonymous quantities: each important element needs a location, purpose, relationship, status, or documented basis.
Coordination questions to close before the proposal
Architectural door numbers, handing, frame, swing, glazing, ceiling, wall, mounting, and accessibility
Architectural door numbers, handing, frame, swing, glazing, ceiling, wall, mounting, and accessibility. Record the value, source, verification status, responsible party, and revision so another person can audit the decision.
Door hardware set, lock function, latch, closer, panic hardware, transfer device, keying, and hardware supplier
Door hardware set, lock function, latch, closer, panic hardware, transfer device, keying, and hardware supplier. Show the relationship on the correct drawing or schedule instead of burying it in a note that cannot be traced.
Egress, emergency release, fire-alarm interface, elevator or stair conditions, adopted requirements, and AHJ review
Egress, emergency release, fire-alarm interface, elevator or stair conditions, adopted requirements, and AHJ review. Separate observed conditions from design assumptions and customer choices; price uncertainty as an allowance or exclusion when needed.
Power supply, circuit, battery, voltage drop, enclosure, grounding, surge protection, and electrician scope
Power supply, circuit, battery, voltage drop, enclosure, grounding, surge protection, and electrician scope. Carry stable identifiers into the takeoff, proposal, installation record, test evidence, and closeout documents.
Network, server or cloud, addressing, VLAN, credentials, cybersecurity, integrations, backups, and IT ownership
Network, server or cloud, addressing, VLAN, credentials, cybersecurity, integrations, backups, and IT ownership. Review capacity, compatibility, access, serviceability, future change, and failure behavior before the product is committed.
Security policy, credential issuance, schedules, visitor process, monitoring, incident response, training, and closeout
Security policy, credential issuance, schedules, visitor process, monitoring, incident response, training, and closeout. Assign ownership at the interface with architecture, electrical, IT, operations, other vendors, and the authority having jurisdiction.
Coordination is part of the product. A device may be inexpensive while its pathway, power, network, mounting, licensing, access, programming, firestopping, outage window, or third-party interface carries the real cost. The drawing set should expose those dependencies early enough for a responsible party to answer them.
Worked example: a small office with a public lobby, staff entrance, server room, and two stair doors
Starting problem. The sales sketch shows four readers but does not record lock type, egress behavior, fire interface, existing hardware, controller capacity, or which trade provides door modifications.
Design response. Each opening receives a door matrix row tying reader, lock, REX, DPS, power transfer, controller I/O, cable, sequence, and responsibility to the same opening ID.
Commercial and field result. The proposal separates access-control work from electrician and door-hardware work, while the field team receives a testable sequence instead of an ambiguous symbol count.
The example is not a product recommendation or a quantity template. Its value is the reasoning chain: define the operating outcome, identify what is verified, document relationships, expose dependencies, and reconcile the resulting work to an issued revision. Reuse that method, but verify every location, dimension, product, code requirement, pathway, calculation, and responsibility on the actual project.
Example review checkpoints
- Can a reviewer explain why every major element exists and which customer outcome it supports?
- Can an estimator trace every major quantity to a plan, schedule, schematic, calculation, allowance, or explicit assumption?
- Can a field technician distinguish approved work, alternates, owner-furnished items, existing conditions, demolition, and unverified conditions?
- Can IT, electrical, architecture, operations, and other vendors see their interfaces without interpreting hidden design intent?
- Can the team record a change once, identify affected documents and quantities, obtain approval, and preserve the prior revision?
- Does the acceptance plan test operating outcomes and interfaces instead of confirming only that devices power on?
How to evaluate access control system design software
Use a representative project instead of a polished demonstration. Recreate a real survey condition, one shared infrastructure dependency, one customer change, and one scope alternative. The evaluation should expose whether the tool supports decisions or simply makes drawing faster.
| Test | What good looks like | Warning sign |
|---|---|---|
| Baseline and revisions | Rooms, scale, field evidence, assumptions, issue status, and revisions remain visible and controlled. | A new background or duplicate file silently breaks identities and quantities. |
| Industry documentation | Plans, schedules, schematics, details, notes, and responsibility fields match the discipline. | Generic icons substitute for system relationships and deliverables. |
| Quantity traceability | Equipment, accessories, cable, infrastructure, licenses, labor, and options trace to the approved revision. | The estimate is a separate list that cannot be reconciled to the plan. |
| Customer scope | Inclusions, exclusions, allowances, alternatives, prerequisites, and decisions are understandable. | The proposal promises performance while hiding assumptions and third-party work. |
| Field handoff | Technicians receive stable IDs, current documents, verification items, change control, test expectations, and closeout structure. | Installers work from screenshots or sales notes without revision status. |
| Connected workflow | The plan can support proposal, follow-up, approval, change, and closeout without retyping the project. | Every workspace recreates customer, location, item, quantity, and status data. |
Common failure modes
- Device-count design: a quantity is selected before purpose, geometry, interfaces, or infrastructure are understood.
- Decorative schematic: lines show that boxes connect but omit ports, media, direction, protocol, power, ownership, or failure behavior.
- Invisible shared scope: racks, network, power, pathways, accounts, licensing, programming, and testing are assumed rather than assigned.
- Revision drift: plan, schedule, BOM, proposal, installer copy, and closeout record describe different versions of the project.
- False precision: unmeasured routes, unverified conditions, preliminary models, or early product choices are presented as confirmed facts.
- Weak acceptance: completion means “installed” instead of verified operating outcomes, interfaces, training, documentation, and owner approval.
