Low-Voltage Plan Examples with Decisions and Coordination

Use this hub to study how a low-voltage plan turns real constraints into documented decisions. A trustworthy example does not ask you to copy device locations. It shows the scenario, assumptions, rejected options, shared identities, schedules, coordination conflicts, proposal consequences, and items that still require verification.

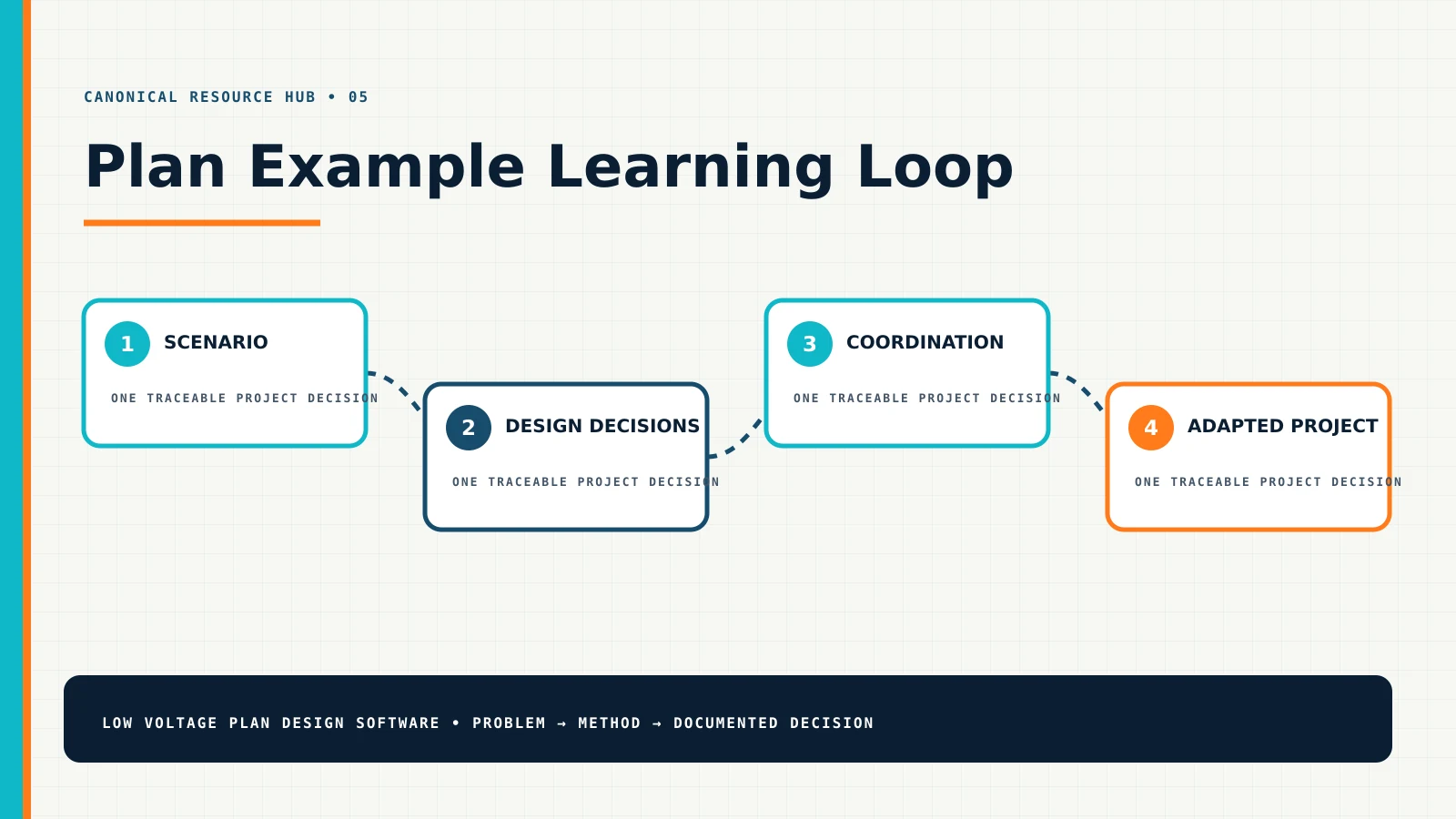

Plan Example Learning Loop showing scenario, design decisions, coordination, adapted project — Plan Example Learning Loop: a practical path from scenario to adapted project.

See the reasoningUnderstand why a device, pathway, rack, or interface was documented—not only where a symbol was placed.

Recognize dependenciesFind the network, power, door, ceiling, pathway, furniture, customer, and trade decisions hidden behind a plan.

Reuse the method safelyCopy the information structure while replacing every unverified project value with current evidence.

Current annotated plan scenarios

Restaurant systems

Restaurant POS and network diagram

See how terminals, peripherals, kitchen or receipt devices, wired and wireless connections, switch ports, VLAN responsibility, ISP handoff, power, and service continuity relate.

Open POS/network example

Residential controls

Smart-home lighting control floor plan

Study room use, lighting zones, control locations, sensor intent, scenes, interfaces, network or bus relationships, commissioning, and homeowner training.

Open smart-lighting example

Coordinated project

Restaurant multi-discipline low-voltage plan

Follow security cameras, POS, Wi-Fi, structured cabling, audio, pathways, rack resources, scope boundaries, quantities, and proposal handoff on one controlled baseline.

Open multi-discipline example

For detailed drawing methods, move from an example into the design guide library. For terminology, open the field glossary. For quantity and capacity checks, use the planning tools hub.

What makes a plan example worth trusting?

Required layer	What the example should reveal	Question to ask
Scenario	Building use, stakeholders, desired outcome, constraints, and scope	Is this situation actually comparable to my project?
Evidence	Drawing source, field measurements, photographs, existing conditions, and inaccessible areas	Which statements were verified and which remain assumptions?
Design intent	Purpose of each device, zone, scene, opening, outlet, endpoint, or pathway	What problem does this item solve?
Relationships	Serving rack/panel, pathway, cable, port, controller, switch, source, destination, and interface	Can I trace the item beyond its symbol?
Alternatives	Rejected locations, methods, products, routes, or scope options with reasons	What tradeoff produced the selected approach?
Commercial impact	Quantities, accessories, labor, allowances, exclusions, alternates, and customer responsibilities	Can the proposal be reconciled to the design?
Review boundary	Manufacturer, IT, engineering, code, licensing, safety, and AHJ items	What must be confirmed before approval or installation?
Revision and closeout	Decision log, approved version, field changes, tests, training, and record set	How does the example remain reliable after construction starts?

Three scenarios, three different lessons

Scenario 01 · Restaurant POS/network

The terminal is only one dependency in the transaction path

A useful diagram starts with the business process: order entry, payment, receipt, kitchen output, reporting, and recovery when internet service fails. It then distinguishes wired terminals, wireless handhelds, printers, kitchen displays, payment devices, access points, switch ports, VLAN or security ownership, ISP handoff, power, UPS, and counter pathways. The lesson is not “use this exact network.” It is to document every prerequisite and responsible party that can stop a transaction.

Scenario 02 · Smart-home lighting

Controls make sense only in relation to rooms, loads, and user behavior

The example connects lighting zones to room use, control locations, occupancy or daylight intent, scenes, local override, interfaces, wiring or bus relationships, network dependencies, equipment location, commissioning, and training. A copied keypad location may fail when furniture, circulation, family routines, electrical design, or finish conditions differ. The reusable value is the zone-and-control information model.

Scenario 03 · Restaurant multi-discipline

Shared infrastructure turns separate systems into one project

Cameras, POS, Wi-Fi, cabling, audio, and access-related work can share ceiling space, pathways, telecom rooms, racks, switches, PoE capacity, UPS, internet service, device labels, working hours, lifts, patching, and closeout responsibilities. A coordinated baseline exposes collisions and missing ownership before each discipline produces a separate estimate. The reusable method is to share location and identity while preserving discipline-specific schedules and review boundaries.

A five-question worksheet for reviewing any plan example

Before using an example as a reference, select one representative device, opening, outlet, room, pathway, or system branch. Follow it through the example and write down the evidence for each answer. If the example cannot support the chain, treat it as inspiration rather than a reliable technical reference.

Review question	Evidence to locate	Action when it is missing
What customer or operational problem does this item solve?	Purpose statement, scene intent, opening function, room use, user need, or performance objective	Do not copy the location until the current project outcome is defined.
Which verified condition supports its location?	Measured background, photograph, mounting surface, ceiling condition, field of view, coverage area, pathway, furniture, or access	Mark the condition unverified and assign a survey action.
What serves it?	Cable ID, pathway, rack, panel, controller, switch port, PoE source, circuit, network, source, destination, or interface	Add the missing relationship to the appropriate schedule, riser, network map, or signal flow.
How does it affect price and responsibility?	Quantity, accessories, labor, license, test, configuration, allowance, exclusion, alternate, or customer-provided prerequisite	Reconcile it with the BOM and proposal before customer approval.
What proves completion?	Label, test result, commissioned behavior, accepted scene, training record, marked-up change, and record drawing	Define the acceptance and closeout evidence before installation begins.

This worksheet turns passive browsing into a project review. It also makes examples easier to compare: two drawings can look similar while one provides a complete evidence chain and the other leaves its quantities, connections, and assumptions unexplained.

How to adapt an example without copying its mistakes

Copy the questions, not the answers.Reuse the survey categories, schedule fields, coordination checks, and decision sequence.
Replace the baseline.Use the current authorized drawing and verify rooms, openings, scale, mounting conditions, pathways, and existing infrastructure.
Rewrite the purpose.Define the present customer’s scene, opening, user, coverage, service, control, transaction, or communication outcome.
Recalculate every dependency.Verify models, dimensions, optics, power, PoE, ports, storage, rack space, pathways, cable, licenses, labor, and capacity.
Reassign responsibility.Identify the customer, IT provider, electrician, door-hardware trade, architect, engineer, manufacturer, installer, and AHJ roles for this project.
Issue a new controlled record.Give the adapted plan its own project ID, revision, schedules, BOM, proposal relationship, approvals, and closeout path.

Begin your own baseline with the site-survey-to-floor-plan guide, then use the multi-discipline coordination guide when systems share infrastructure.

Authoritative reference starting points

Use these sources to verify current terminology, practices, product context, and standards direction. Confirm the edition, jurisdiction, manufacturer requirements, and project applicability before relying on any external reference.

TIA standards resources — telecommunications standards context to compare with project assumptions
Cisco campus LAN and WLAN design guide — network design context to compare with project examples
ONVIF cybersecurity recommendations — IP physical-security cybersecurity review context
